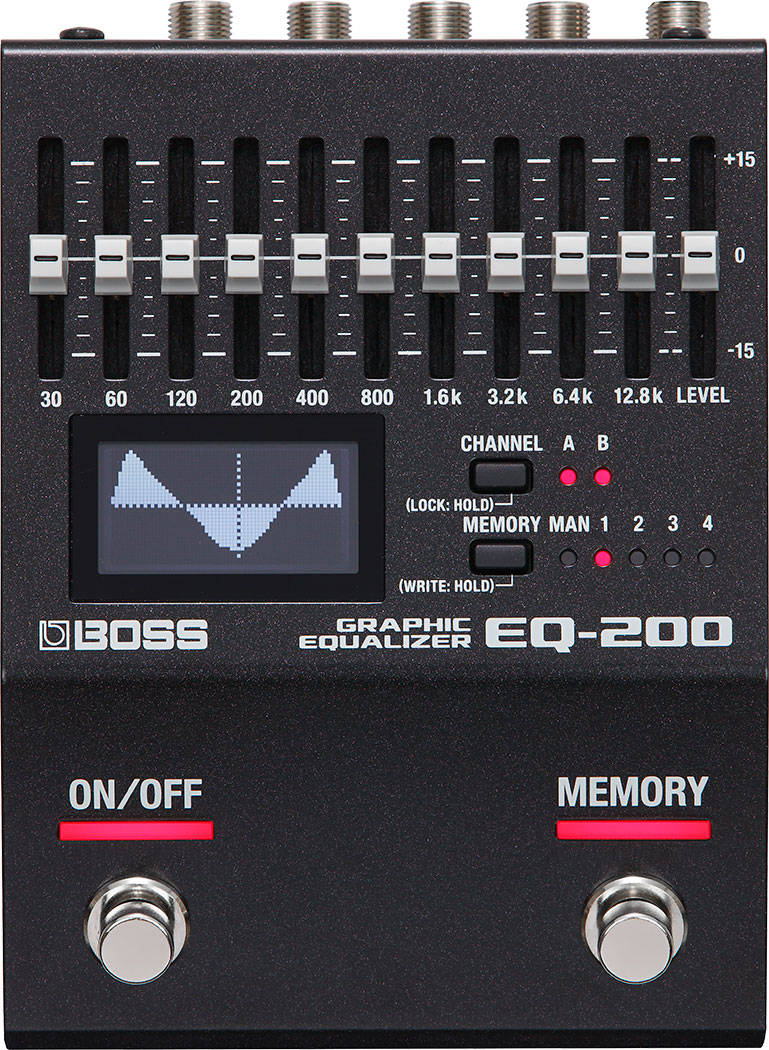

The EQ-200 is the most flexible compact equalizer ever designed for guitar and bass. It features two 10-band EQ channels and a built-in graphic display that shows the current EQ curve at a glance. Selectable signal flow structures configure channels for stereo, parallel or serial operation, and it's even possible to connect external pedals for deep pre/post tone shaping. Going further, the frequency centers of the 10 bands can be set to three different types, allowing you to optimize the EQ-200's performance for different instruments.
Features
- Class-leading sound quality with 32-bit AD/DA processing, 32-bit floating point processing and 96 kHz sample rate
- Dual 10-band equalizer that can be used in stereo, parallel or series
- Insert function for processing external effects with pre and/or post tone shaping
- Three different range settings: 30 Hz to 12.8 kHz, 32.1 Hz to 16 kHz and 28 Hz to 14 kHz
- 15 dB boost/cut on each band, plus global level control for each channel
- Stereo link function to operate both EQ channels together
- Intuitive interface with convenient sliders and graphic equalization screen
- Real-time panel adjustment and four memories to store favorite sounds
- Panel lock feature disables controls to prevent unwanted changes.
- Two onboard foot controls with customizable assignments
- Support for extended control via external pedals, expression pedal or MIDI
- Full MIDI inputs/outputs supplied with TRS mini-jacks (BMIDI-5-35 adapter cable available separately)
- Micro USB port for firmware updates
- Operates on a PSA series AC adapter or three AA batteries
Technical characteristics
Sampling frequency: 96 kHz
AD/DA conversion: 32 bits
Processing: 32-bit floating point
Memory: 4 + Manual
Nominal input level: INPUT A/MONO, B: -10 dBu
Maximum input level: INPUT A/MONO, B: +7 dBu
Input impedance: INPUT A/MONO, B: 2 M ohm
Nominal output level: OUTPUT A/MONO, B: -10 dBu
Maximum output level: OUTPUT A/MONO, B: +7 dBu
Output impedance: OUTPUT A/MONO, B: 1 k ohms
Recommended load impedance: OUTPUT A/MONO, B: 10 k ohms or more
Bypass: Buffered bypass
Controls: ON/OFF switch, memory switch, 30--12.8k sliders, LEVEL slider, A/B button, MEMORY button
Display: Graphical LCD (64 x 32 points, backlit LCD)
Indicator: A/B indicator, memory indicators (MAN, 1--4)
Connectors:

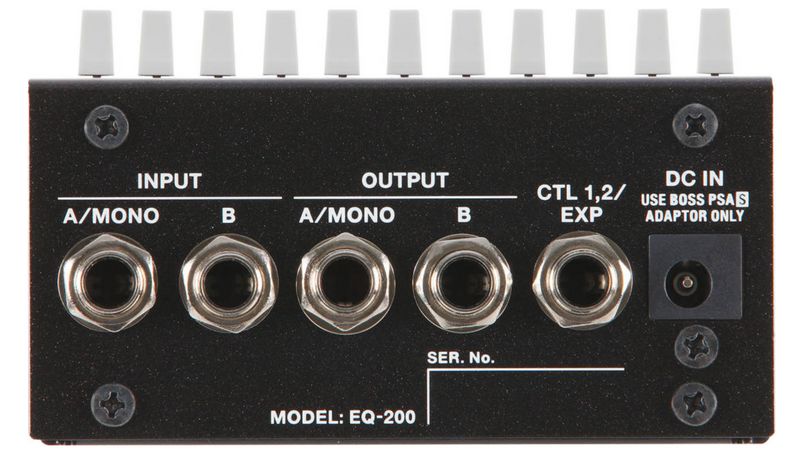

- INPUT (A/MONO, B), OUTPUT (A/MONO, B) jacks: 1/4 inch phone type
- CTL 1, 2/EXP jack: 1/4 inch TRS phone type

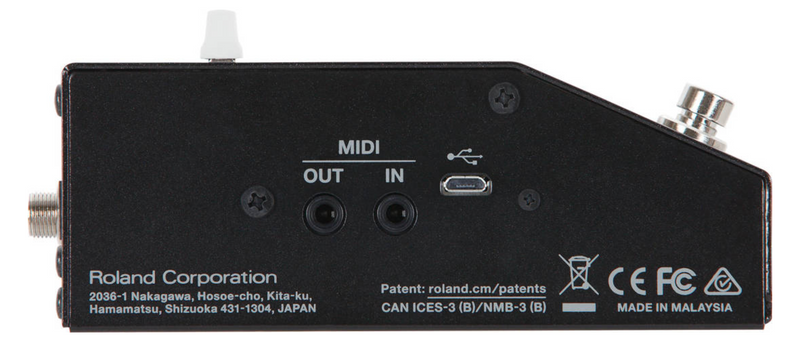

- MIDI jacks (IN, OUT): Miniature stereo phone type
- DC IN jack
- USB port: USB type micro-B (program update only)
Power supply: Alkaline battery (AA, LR6) x 3, AC adapter (sold separately)
Current consumption: 170 mA
Dimensions: 138 x 101 x 60 mm / 5.4" x 4" x 2.4" x 2.4
Weight: 630 g / 1.4 lb
