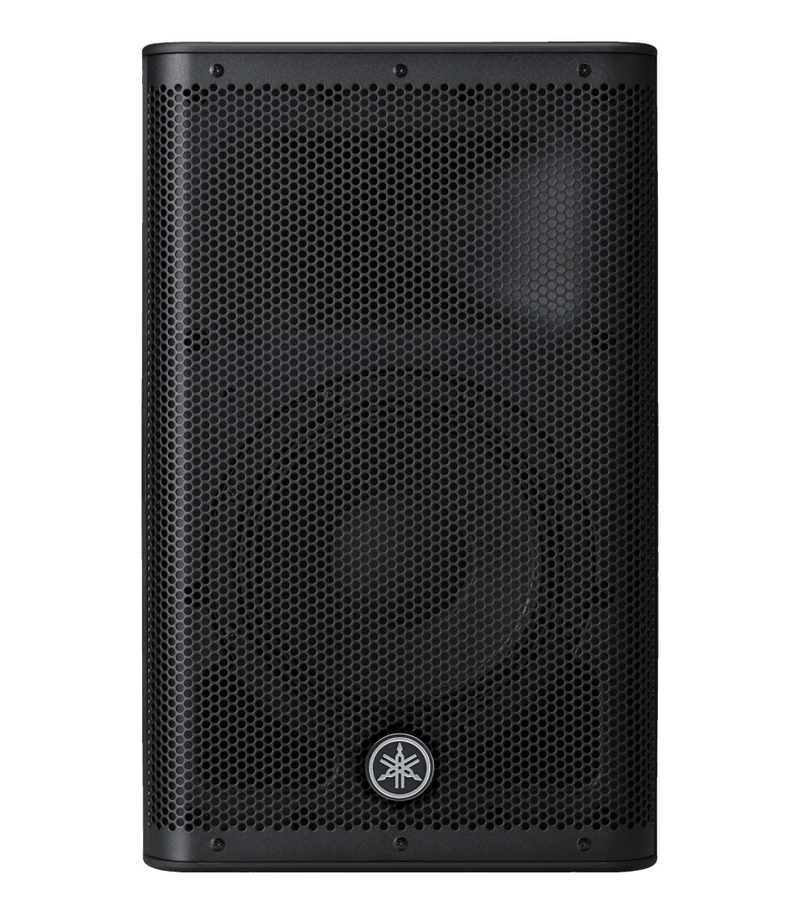

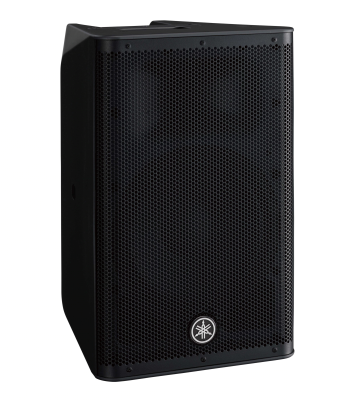

Portable, yet capable of producing an astonishing 132 dB of sound pressure level, the DXR10-MKII is compact and functional, making it ideal for a wide range of applications. Whether simple vocal/instrumental amplification, high-powered floor monitoring, or a compact SR system, the DXR10mkII delivers uncompromising sound quality and power.
Less weight, more power
Improved Custom Transducers: All DXR-MKII Series transducers have been meticulously selected and fully customized to deliver optimal performance. High-power woofers deliver ultra-low distortion and deep, defined bass, while new, larger but much lighter 1.75" neodymium precision HF compression drivers produce high-frequency Accurate mid and high frequencies up to 20 kHz with reduced weight.
High dispersion, constant directivity horn: The largest HF transducer is mounted on an all-new 90? constant directivity horn. x 60?, designed with the aim of minimizing deterioration of the radiation pattern in oblique directions as more conventional horns are prone to do. This can help achieve a more ideal coverage area without irregularities. With the new horn with constant directivity and high dispersion, the sound extends in a more rectangular way offering 90? horizontal coverage. x60? vertical, with wide frequency sound projected to the limits of the coverage area.
1100W High Efficiency Class D Amplifiers
New compact, high-power DXR mkII amp modules: All DXR mkII series loudspeakers feature highly efficient Class D amplifiers that have been optimally designed to match the DXRmkII's HF and LF transducers. These high-performance amplifiers deliver the highest sound power in their class with a power of 1100W, producing an impressive sound pressure level of up to 134dB. They also offer a very fast attack and superior transient response, which contributes greatly to the incredible audio performance of these speakers.
Integrated intelligent 3-channel mixer
The DXR mkII series features a flexible onboard mixer with a variety of inputs, making it ideal for simple vocal and instrumental amplification. With its flexible inputs/outputs, the DXR mkII series can comprise a complete PA system or integrate seamlessly into a setup using DZR or DXS loudspeakers.
Versatile mic and line level input capability: The DXR mkII onboard mixer can handle up to three simultaneous inputs. It accepts mic and line level inputs, giving you the flexibility to connect to a variety of sources ranging from microphones to line level instruments and portable audio devices. In the MIC position, an HPF is automatically activated to reduce unwanted low frequencies.
Features
- Improved MKII design for louder sound from a lighter, more compact package
- Ultra-precise 48-bit DSP processing for high-definition audio
- Intelligent dynamic control for consistent clarity at any output level
- Extensive DSP protection functions for maximum output capacity
- 1100W high efficiency Class D amplifiers
- Integrated intelligent 3-channel mixer
- Durable and compact ABS housing, matte black finish.
- Symmetrical housing for floor monitoring in mirror mode
- Double angle pole mount socket
- Hanging points for standard U-brackets and eyebolts (eyebolts not included)
Technical characteristics
Speaker type: 10" bi-amplified speaker, 2-way, bass-reflex type
Frequency range: 56kHz - 20kHz
Nominal coverage: H: 90?, V: 60?
Crossover: FIR-X tuning™ (linear phase FIR filter)
Output power: Dynamic: 1100W (LF: 950W HF: 150W) / Continuous: 700W (LF: 600W HF: 100W)
Maximum output level (1m; on-axis): 131dB SPL

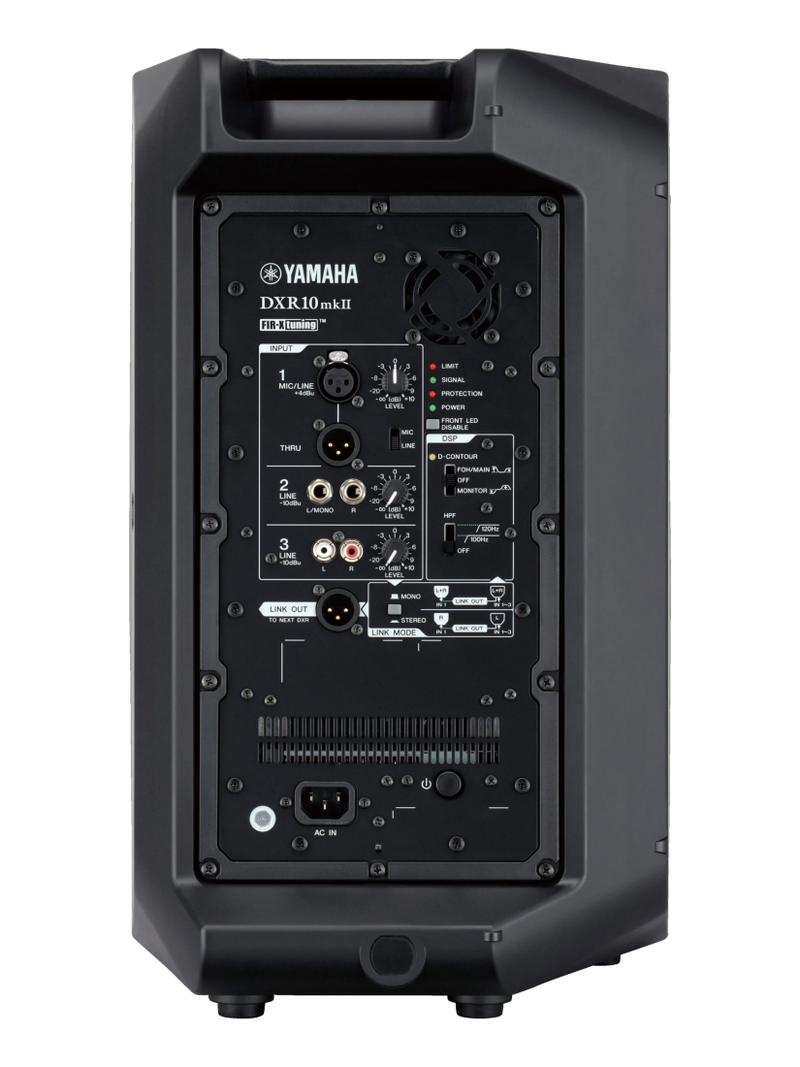

I/O connectors: INPUT: XLR-3-3-31 x1 x1, INPUT2: Telephone x2, INPUT3: RCA PIN x 2, THRU: 1
Processors: D-CONTOUR: FOH/MAIN, MONITOR, OFF
Power supply required: 100V - 240V, 50Hz/60Hz
Power consumption: 90W
Suspension Rod/Mounting Hardware: Top x2, Rear x1 (For M8 x 15mm eyelet screw)
Pole Socket: 35mm 2-way (0 or 7 degrees)
Dimensions: 502mm x 310mm x 305mm | 19.75" x 12.25" x 12" x 12
Weight: 13.9 kg | 30.6 lbs
Accessories included: UB-DXR10 (U-bracket)
