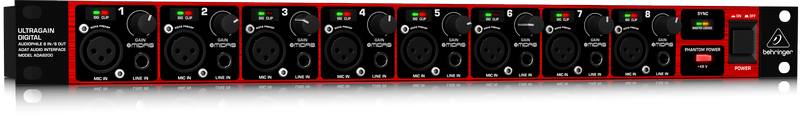

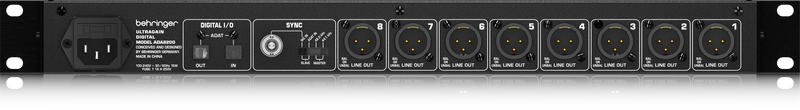

ADAT Audiophile 8-in/8-out audio interface with MIDAS microphone preamplifiers
The incredible ADA8200 features stunningly accurate reference-class Cirrus Logic A/D - D/A converters and 8 award-winning MIDAS-designed mic preamps, making it the natural choice for professional musicians and audio engineers. her. Your recording tracks will sound as amazing as you imagined - when you lay them down with the ADA8200!
- Very high quality 8-channel A/D and D/A interface for virtually any digital recording and mixing environment
- 8 state-of-the-art microphone preamplifiers, designed by MIDAS
- Phantom power on all microphone inputs
- Reference-class Cirrus Logic - 24-bit converters for ultimate signal integrity
- Handles sample rates of 48 and 44.1 kHz
- External synchronization of the sampling frequency by word clock or ADAT input
- ADAT optical input/output interface for optimal compatibility
- All mic/line inputs routed to ADAT output
- ADAT input routed to all line outputs
- "Planet Earth" switching power supply for maximum flexibility (100 - 240 V~), noise-free audio, superior transient response and low power consumption to save energy
- Behringer 3-year warranty program*.
- Designed and manufactured in Germany
Specifications:
Microphone Inputs
Design: Microphone preamp designed by MIDAS
Type: XLR connector, electronically balanced, discrete input circuit
Gain range: +10 to +60 dB
Maximum input level: +6 dBu @ +10 dB gain for 0 dB FS
Impedance: 2.7 kΩ symmetrical
Phantom power: +48 V, switchable
Line inputs
Type: 1/4" TRS connector, electronically balanced, discrete input circuit
Impedance: approx. 20 kΩ symmetrical, approx. 10 kΩ unbalanced
Gain range: -10 to +40 dB
Maximum input level: +26 dBu @ -10 dB gain for 0 dB FS
Line outputs
Type: XLR connector, electronically balanced
Impedance: approx. 1 kΩ symmetrical, approx. 500 Ω unbalanced
Max. Output level: +16 dBu @ 0 dB FS
Digital inputs
Type: TOSLINK, optical connector
Format: ADAT, 8 channels, 24 bits @ 44.1 / 48 kHz
Digital outputs
Type: TOSLINK, optical connector
Format: ADAT, 8 channels, 24 bits @ 44.1 / 48 kHz
Sync
Source: Internal 44.1 / 48 kHz, ADAT input, word clock input
Word Clock: Type: BNC connector
Input level: 2 to 6 V peak to peak
Frequency range: 44.1 to 48 kHz
System
Frequency range: 10 Hz to 24 kHz at 48 kHz sampling rate
THD:
