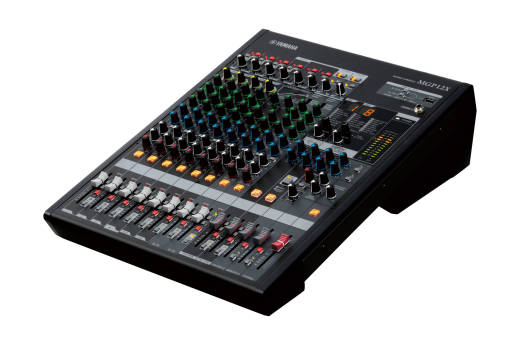

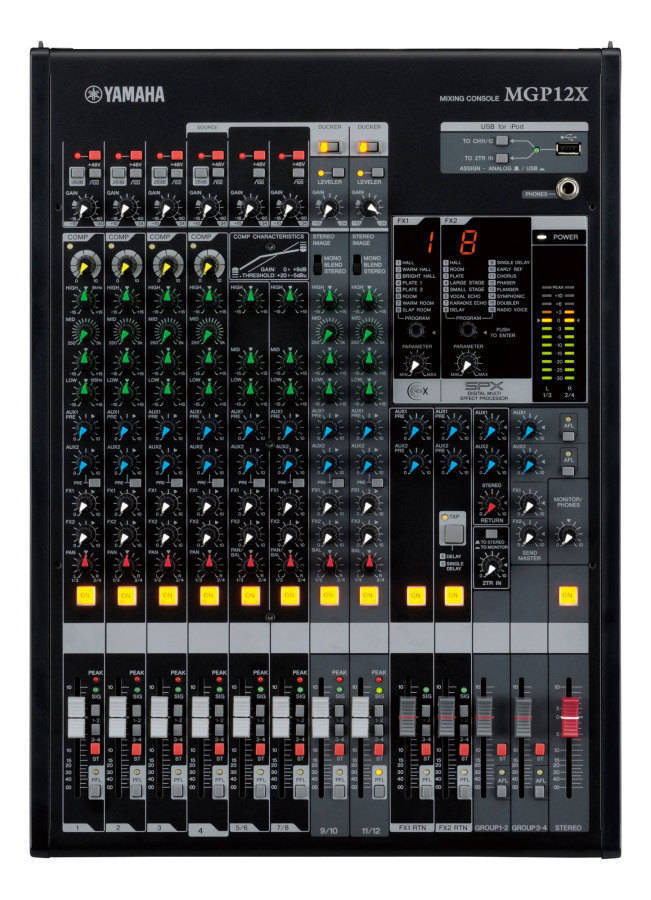

Not only for bands and DJs, MG Series mixing consoles can easily accommodate a truly impressive range of applications, from portable PA to fixed installation. Now, with MGP's new digital features and superior sound, the possibilities are endless.
Overview :
Studio-quality, discrete Class A D-PRE mic preamps with inverted Darlington circuitry
X-pressive musical equalizer based on Yamahas famous VCM technology
Professional 1-button compressors with LED indicators
High-quality dual digital effects processors: advanced REV-X and classic SPX
Hybrid stereo channels using powerful DSP, - proprietary DSP
Digital connectivity for iPod/iPhone
MGP editor for detailed control of console DSP settings via iPod/iPhone
Robust, impact-resistant, powder-coated metal chassis

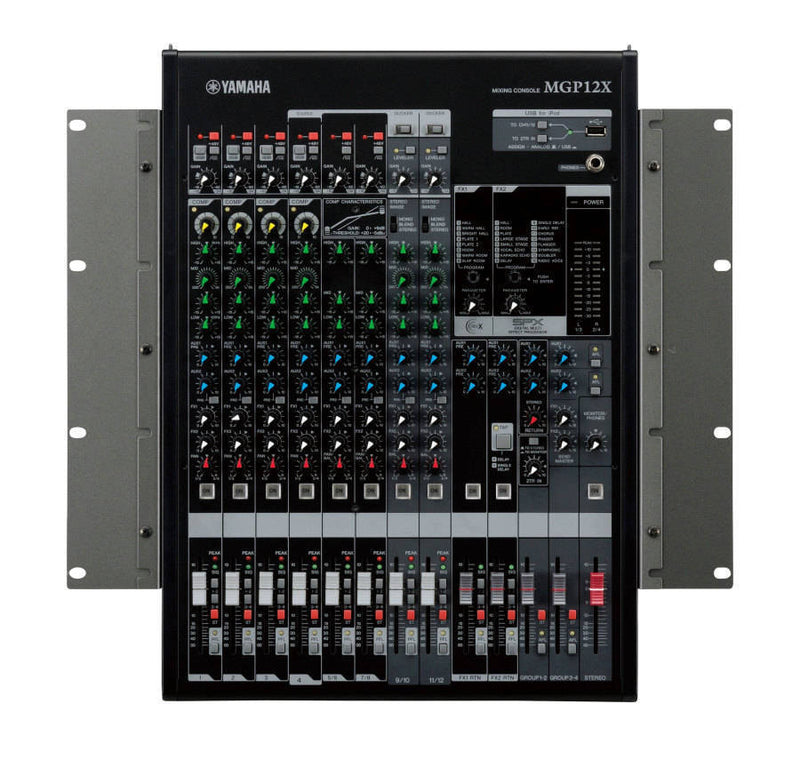

Integrated rack and pinion bearings for easy rack mounting
Universal internal power supply for worldwide use
6 mic inputs with 48V phantom power and HPF per channel
12 line inputs (4 mono and 4 stereo)
Additional 2TR inputs provided to accept output from analog devices or iPod/iPhone
2 AUX sends + 2 FX sends
4 GROUP buses + ST Bus
From preamps, EQs and effects, to hybrid channel functions, to iPod/iPhone connectivity, every look, every feature, every tone, every tone, makes the MGP a premium mixing console in a class of its own.
Preview :
Mixing capacity
Mixer channels - 12 line inputs (4 mono and 4 stereo)
GROUP - 4 GROUPS Bus + ST Bus
AUX - 2 AUX sends + 2 FX sends
Input Channel Functions - Compressor CH1-4,HPF(100Hz 12dB/oct), CH EQ(MONO) 15dB(Max.):High 8kHz shelving/Mid 250Hz-5kHz picaking(CH1-4,9-12)/ Low 125Hz shelving, CH EQ(STEREO) 15dB(Max.):High 8kHz shelfing/ Medium 2.5kHz peak(CH5-8)/ Low 125Hz shelfving
Integrated processors - FX1:REV-X (8 PROGRAM, PARAMETER control), FX2:SPX (16 PROGRAM, PARAMETER control)

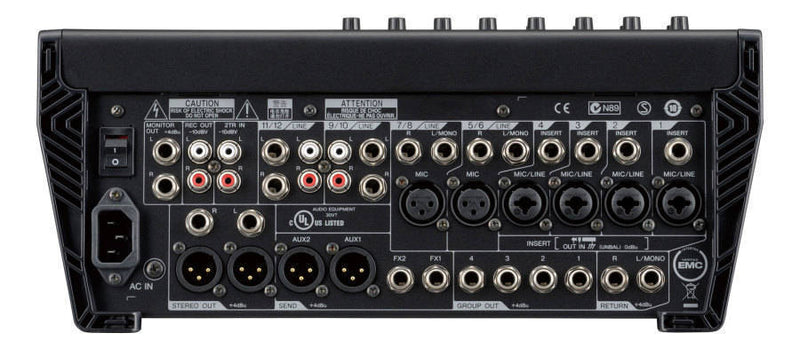

I/O
Microphone inputs - MIC:6 (100Hz 12dB/oct)
Phantom Power - 48V Phantom Power per channel
Line inputs - LINE: 4mono+4stereo, CH INSERT IN: 4, RETURN: 1 stereo, 2TR IN: 1 stereo
Digital Inputs/Outputs - Audio USB USB USB Input: iPod, iPhone exclusive
General specifications:
Total harmonic distortion - 0.02% (20Hz-20kHz@ +14dBu)
Frequency response - +0.5/-1.0dB 20Hz - 20kHz, refer to nominal output level @1kHz
Hum and noise level
Equivalent input noise: -128 dBu (20Hz20 kHz, Rs=150Ω, Input Gain = Maximum)
Residual output noise: -102 dBu (20Hz20 kHz, Rs=150Ω, Input Gain = Maximum)
Crosstalk - - -74dB @ 1kHz
Power supply - 100-240V 50Hz/60Hz
Power consumption - 45W max
Dimensions
L - 348mm
H - 143mm
D - 495mm
Net weight - 7.5 kg
