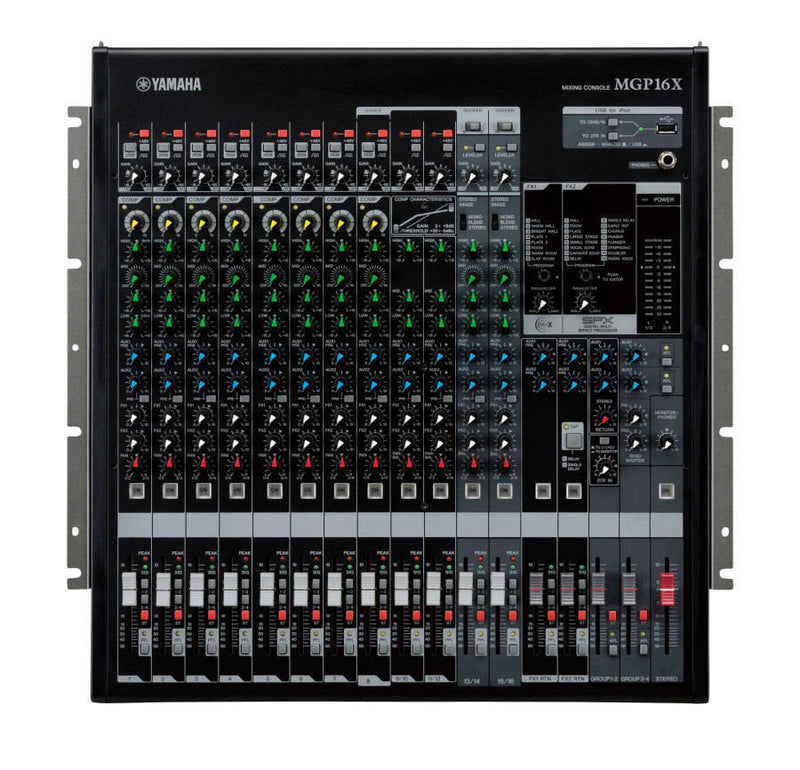

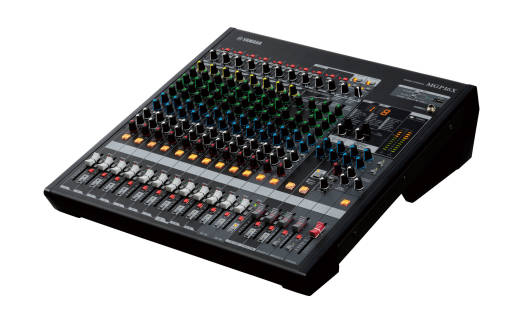

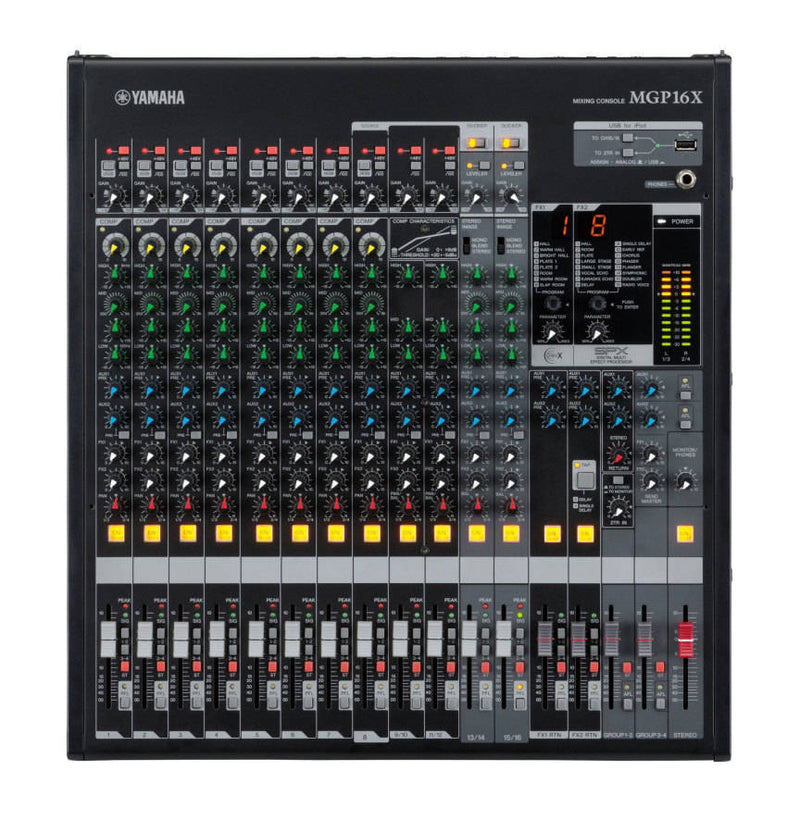

Not only for bands and DJs, MG Series mixing consoles can easily accommodate a truly impressive range of applications, from portable PA to fixed installation. Now, with MGP's new digital features and superior sound, the possibilities are endless.
Overview :
Studio-quality, discrete Class A D-PRE mic preamps with inverted Darlington circuitry
X-pressive musical equalizer based on Yamahas famous VCM technology
Professional 1-button compressors with LED indicators
High-quality dual digital effects processors: advanced REV-X and classic SPX
Hybrid stereo channels using powerful, proprietary DSP
Digital connectivity for iPod/iPhone
MGP editor for detailed control of console DSP settings via iPod/iPhone
Robust, impact-resistant, powder-coated metal chassis
Integrated rack and pinion bearings for easy rack mounting
Universal internal power supply for worldwide use
10 mic inputs with 48V phantom power and HPF per channel
Additional 2TR inputs provided to accept output from analog devices or iPod/iPhone
16 line inputs (8 mono and 4 stereo)
4 GROUP buses + ST Bus
2 AUX sends + 2 FX sends
From preamps, EQ and effects to hybrid channel functions and iPod/iPhone connectivity, every look, every feature, every sound, makes the MGP a premium mixing console in a category all its own.
Preview :
Mixing capacity
Mixer channels - 16 line inputs (8 mono and 4 stereo)
GROUP - 4 GROUPS Bus + ST Bus
AUX - 2 AUX sends + 2 FX sends
Input Channel Functions - Compressor CH1-8,HPF(100Hz 12dB/oct), CH EQ(MONO) 15dB(Max.):High 8kHz shelving/Mid 250Hz-5kHz picaking(CH1-8,13-16)/ Low 125Hz shelving, CH EQ(STEREO) 15dB(Max.):High 8kHz shelfing/ Medium 2.5kHz peak(CH9-12)/ Low 125Hz shelfving
Integrated processors - FX1:REV-X (8 PROGRAM, PARAMETER control), FX2:SPX (16 PROGRAM, PARAMETER control)

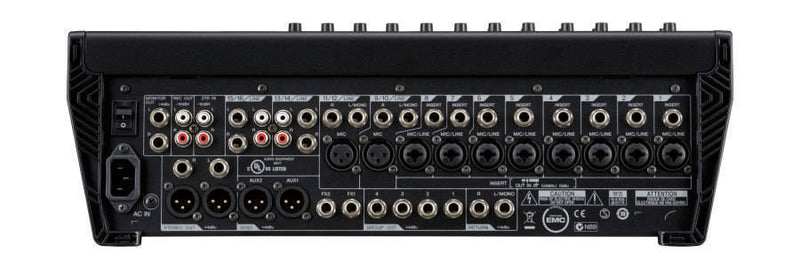

I/O
Microphone inputs - MIC: 10
Phantom Power - 48V Phantom Power per channel
Line inputs - LINE: 8mono+4stereo, CH INSERT: 8, RETURN: 1stereo, 2TR IN: 1 stereo
Digital Inputs/Outputs - Audio USB USB USB Input: iPod, iPhone exclusive
General specifications:
Total harmonic distortion - 0.02% (20Hz-20kHz@ +14dBu)
Frequency response - +0.5/-1.0dB 20Hz - 20kHz, refer to nominal output level @1kHz
Hum and noise level
Equivalent input noise: -128 dBu (20Hz20 kHz, Rs=150Ω, Input Gain = Maximum)
Residual output noise: -102 dBu (20Hz20 kHz, Rs=150Ω, Input Gain = Maximum)
Crosstalk - - -74dB @ 1kHz
Power supply - 100-240V 50Hz/60Hz
Power consumption - 55W max
Dimensions
L - 447mm
H - 143mm
D - 495mm
Net weight - 9.0 kg
