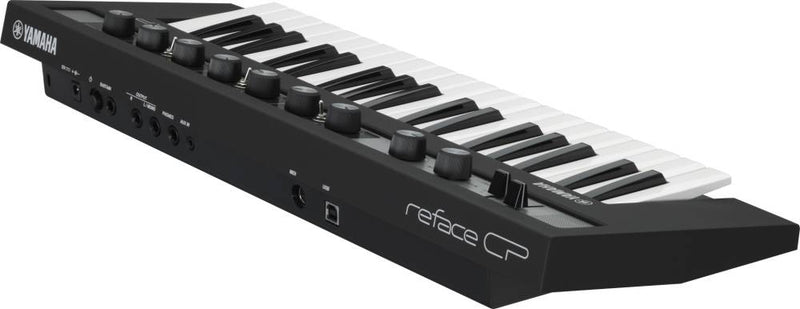

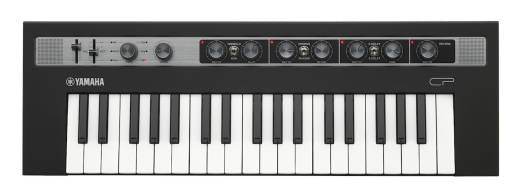

The Yamaha Reface CP is a 37-key mini mobile keyboard with 6 vintage keyboard types, 5 effects, sustain pedal input, built-in stereo speakers, MIDI connectivity, auxiliary input and two line outputs.
The Vintage Keyboard sound engine offers six incredibly detailed vintage keyboard types, including an early and late 1970s tine electric piano, a late 1960s reed electric piano, a 1960s struck string Clavinet. 70s, a toy piano and the Yamaha CP80 electric grand piano. Each type of keyboard corresponds to a Drive and Tremolo setting carefully chosen to offer an incredibly musical pairing. Five pedal box-style effects with direct control are also available.
Control
Based on the FS action found on the Motif XF, the reface's HQ (High Quality) mini keys provide premium feel and response for fast, precise and natural playing. The sustain pedal input enables sustain function for all electric piano sounds.
Mobility and connectivity
The 2W, 3cm stereo speaker system lets you play anywhere, anytime, for up to five hours, with six "AA" batteries. And its specially designed bass reflex port technology enhances bass response for rich, full sound.
- USB "TO HOST" allows MIDI connectivity to your computer or iOS device equipped with a USB port
- Two unbalanced 1/4" line outputs provide connection to mixers, audio interfaces, DI boxes, etc.
- A 3.5mm auxiliary line input lets you connect and hear mobile devices, tablets and more through the instrument
Specs :
VOICE
6 Types of keyboards:
- RdI, early 70s toothed electric piano
- RdII, late 70s toothed electric piano
- Wr, Reed electric piano late 60s
- Clv, Clavinet strings from the 70s
- Toy, toy piano
- CP, Yamaha CP80 electric grand piano
Effects :
- Drive (adds harmonics and distortion)
- Tremolo (Auto-Pan for Rd) or VCM Wah with adjustable depth and flow rate
- Chorus with adjustable depth and speed
- VCM Phaser with adjustable depth and speed
- Digital or analog type delay with adjustable time and depth
- Adjustable depth reverb
KEYBOARD
- 37 touches HQ mini (High-Quality mini)
- Initial touch
SOUND GENERATION
- Maximum polyphony: 128
- Engine: SCM + AWM2
- Amplifiers: 2 W x 2
- Speakers: 3 cm x 2
CONNECTIVITY
- DC IN: DC IN Jack (12 V)
- Headphones: PHONES (6.3 mm, stereo phone jack)
- MIDI: MIDI (mini-DIN IN/OUT)
- AUX IN: AUX IN (3.5 mm, stereo mini jack for phone)
- OUTPUT: L/MONO, R (6.3 mm, TS telephone jack, unbalanced)
- USB HOST MODE: USB (HOST MODE)
- Pedal type: SUSTAIN: FC3(A), FC4(A), FC5 (optional)
- Half shock absorber: Yes (only connected to FC3(A))
POWER FEED
- Power consumption: 6 W (when using PA-130 AC adapter)
- Battery life: Approximately 5 hours
- Automatic shutdown: Yes
- Power supply: Adapters - PA-130 or equivalent recommended by Yamaha
- Batteries: Six rechargeable AA or Ni-MH batteries
ACCESSORIES
- Included: MIDI connection cable, User manual
SIZE/POSSIBILITY
- Dimensions: Width 530 mm (20 7/8")
- Height: 60 mm (2 3/8")
- Depth: 175 mm (6 7/8")
- Weight: 1.9 kg (4 lb, 3 oz) (batteries not included)
