SUMMARY
A classic overdrive gives a subtle boost, big crunch, or searing tone to your solos. Active 3-band EQ shapes your sound the way you want it.
THE DESCRIPTION
Whether you're looking to give your sound a boost or find some heavy gain rich in harmonics with a warm tube character, the 805 overdrive provides the versatility needed for any type of music - blues, country, rock, metal and All. between. The 3-band active EQ provides unprecedented control - you can have a smooth, lyrical bluesy sound one minute, and crushing modern metal crunch the next. The 805 is designed to be the perfect overdrive for pushing the front end of an already distorted amp, giving you plenty of output and tone shaping capabilities, but can also give your clean sound a boost control. Pick up your mids or tighten up your hard rock/metal sound in front of a high gain amplifier. Give this solo a boost that cuts through the mix perfectly and gives your bass rhythm parts a controlled crunch. The 805 is capable of all this and more. Being a true-bypass pedal, it will feel at home on whatever pedalboard you choose.
Like all of our pedals, the 805 Overdrive is designed and assembled in our Santa Barbara, California factory by the same team responsible for our legendary pickups.
FEATURES
Distortion Circuit:
Glass diode, back-to-back battery.
Bypass:
Real bypass
Gain control range:
8dB to 36dB.
Equalizer center frequencies:
• Bass – 90 Hz +/- 11dB
• Mid – 750 Hz +/- 11dB
• Treble – 2.1 kHz +/- 12 dB
Signal to noise ratio:
• Minimum gain, 20 to 20kHz – 112dBV
• Minimum gain, 400 to 20 kHz – 114 dBV
• Maximum gain, 20 to 20 kHz – 97.5 dBV
• Maximum gain, 400 to 20 kHz – 98 dBV
THD input @10mVrms @ 1 kHz with 12 dB gain:
0.15%
Max output before saturation:
0.6Vrms
Input impedance:
470k Ohms
Output impedance:
1k Ohms

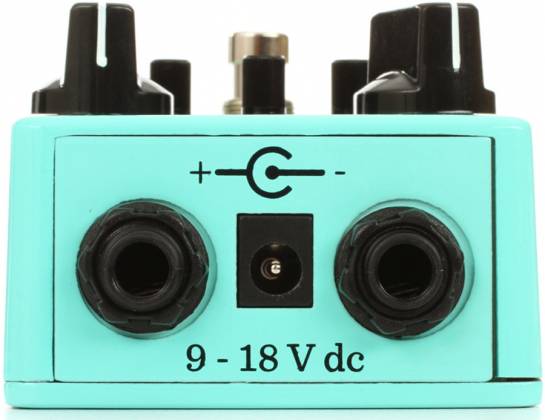

Power:
9V battery or external regulated DC adapter 9 to 18V (center negative)
Current consumption:
4.5mA
Dimensions:
2.61" X 4.90" X 1.45"
Weight:
0.6 lb without battery
