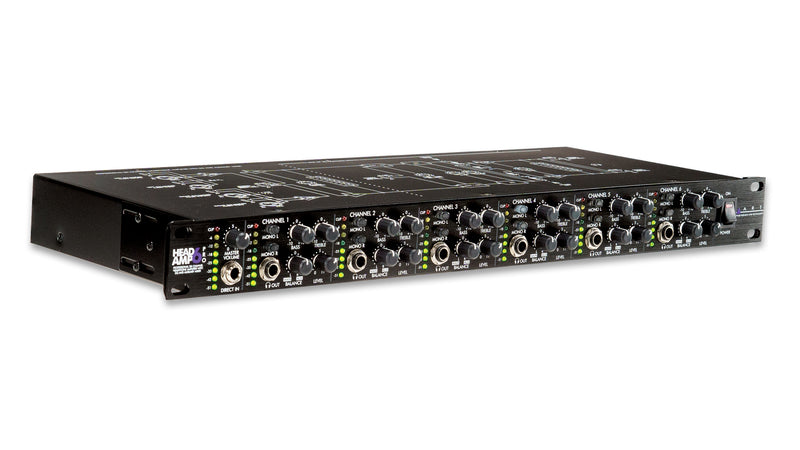

The ART HeadAmp6PRO is a six-channel stereo headphone amplifier that includes a six-channel auxiliary input section that can be used to provide the popular "More-Me" feature on every headphone mix. Each output channel also features a dual-function BALANCE control that will pan between the LEFT and RIGHT sides of the main signal bus, or vary the MIX between the main signal bus and the AUXILIARY input for that respective channel .
Bass and treble controls are included on each output channel to fine-tune the tone. Outputs include front and rear 1/4" stereo TRS jacks for easy installation and quick hookup capability. Two MONO select buttons on each channel select between four operating modes; 1) Stereo, 2) Mono left, 3) Mono right, 4) Mono both (left and right) for versatile monitoring solutions.

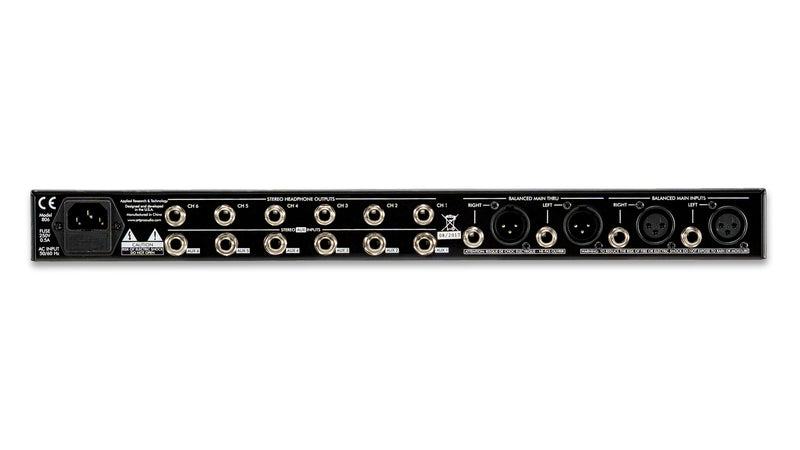

The main outputs for each channel of the headphone amplifier are rear-mounted stereo TRS jacks and are wired in parallel with the corresponding output jacks on the front panel. Front panel, rear panel, or both front and rear panel outputs can be used simultaneously to drive headphones or used as power supplies for additional headphone amplifiers in a distributed audio network.

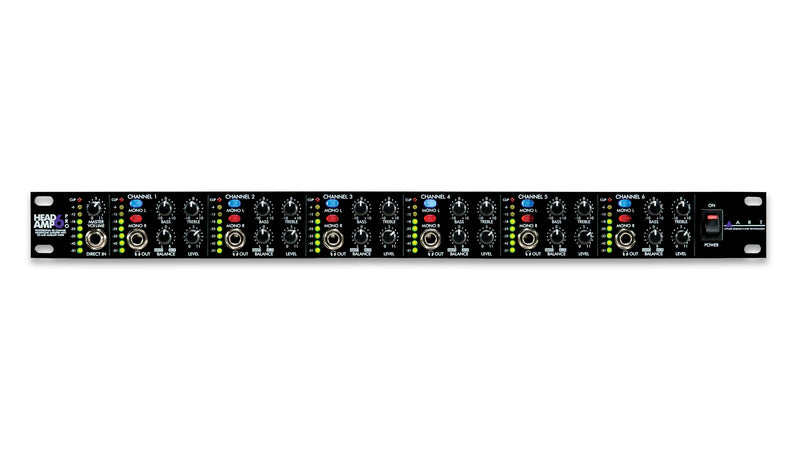

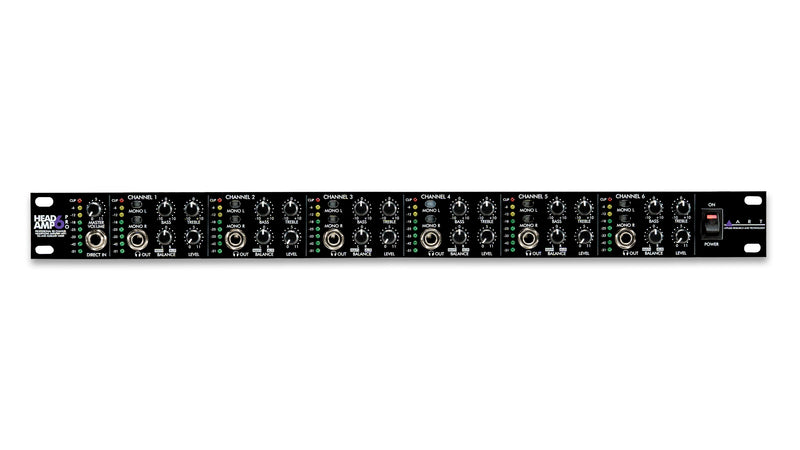

Input options include balanced XLR and 1/4" TRS inputs with matching "Thru" jacks for linking multiple HeadAmp 6 Pro units. An additional 1/4" stereo TRS jack on the front panel for quick patch replacement Rear panel inputs are included for quick insertion of any stereo source. Eight-segment LED level meters provide visual feedback of signal level on all channels as well as the main signal bus.
Main characteristics
Six channels with separate bass and treble controls Front and rear panel output jacks XLR and balanced 1/4" TRS inputs Operates in stereo, mono (left source), mono (right source), or summed mono (left and right source ) Front auxiliary Separate source input 8-segment LED level meters mounted on all channels and buses
Features
Maximum input level +21.5 dBu
Input impedance 40k Ω balanced
Maximum output level 500 mW at 32 Ω
Maximum gain 25.6 dB (tone controls set flat)
Frequency response 20 Hz – 50 KHz +0, -2dB
CMMR 40dB
Dimensions 1.75 x 19 x 7.5 in / 44.5 x 482 x 190 mm
Weight 6.8 pounds (3.1 kg)
Power requirements 105-125 VAC AC 60 Hz
