Field recorders barely larger than your hand are a huge hit with musicians, sound engineers and sound designers. With the release of R-26, this market segment will heat up. This innovative portable recorder is packed with professional features that are completely new to the industry. The R-26 features two types of stereo mics, a pair of XLR/TRS combo inputs for external mics, and a stereo mic input with plug-in power. You can use the internal microphones (cardioid and omnidirectional) simultaneously and add or not signals from the external inputs. Record concerts with line-level connections and room mics, record speeches, lectures or presentations, or take the R-26 with you for on-the-spot recordings in the city or countryside. Incredibly powerful and flexible, this magnificent recorder is a creative artist's dream tool.
Two types of internal stereo microphones (omnidirectional and cardioid) that can be used in a variety of ways
Two XLR/TRS combo inputs with 48V phantom power, plus a plug-in powered stereo mic input
Up to six channels (3 stereo pairs) for simultaneous recording

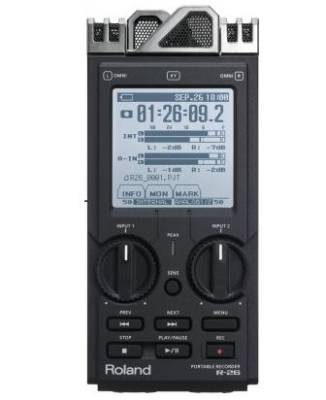

Large LCD touch screen for intuitive navigation
Large input level controls make precise adjustment easy
High-speed USB for use as an audio interface and for external data archiving
“Loop-Back” function: combine with internal or external microphones for optimal video streaming (with “Audio Interface” function only)
Supplied with the software 'SONAR LE' (PC)
RECORDERTracks6 (3 stereo)Signal processingAD/DA conversion: 24 bits, 96/88.2/48/44.1 kHz
Data type for recording
WAVE/BWF: Sampling frequency: 96/88.2/48/44.1 kHz, Bit Depth: 24/16 bits
MP3 (MPEG-1 Audio Layer 3): Sampling frequency: 48/44.1 kHz, Bit Rates: 320/160/128 kbps
WAVE + MP3: Sampling frequency: 48/44.1 kHz, Bit Depth: 16 bits, Bit Rates: 128 kbps
For reading
WAVE: Sampling frequency: 96/88.2/48/44.1 kHz, Bit Depth: 24/16 bits
MP3 (MPEG-1 Audio Layer 3): Sampling frequency: 48/44.1 kHz, Bit Rates: 32-320 kbps or VBR (Variable Bit Rate)Memory cardSD card (compatible with SDHC format)Recording timeWAV/BWF (24-bit/96 kHz, stereo): 27 mins/GB
WAV/BWF (24-bit/96 kHz, 4ch): 14 mins/GB
WAV/BWF (24-bit/96 kHz, 6ch): 9 mins/GB
WAV/BWF (16-bit/44.1 kHz, stereo): 90 mins/GB
WAV/BWF (16-bit/44.1 kHz, 4ch): 45 mins/GB
WAV/BWF (16-bit/44.1 kHz, 6ch): 30 mins/GB
MP3 (128 kbps): 990 mins/GB
MP3 (320 kbps): 390 mins/GB
WAV/BWF+MP3 (16-bit/44.1 kHz): 84 mins/GB
WAV/BWF+MP3 (16-bit/48 kHz): 75 mins/GB
(unit: hours)
• The recording times mentioned above are approximate. They may vary depending on the characteristics of the card used.
• If multiple files are recorded, the total recording time may be less than the figures shown.INPUT/OUTPUTAudio InputsBuilt-in Stereo Microphone: Omnidirectional Microphone (OMNI), Directional Microphone (XY)

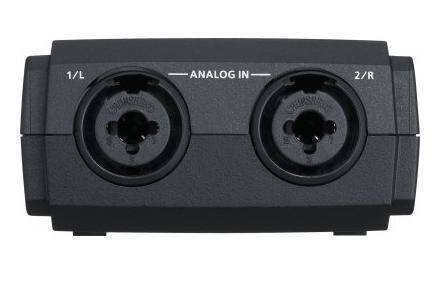

Analog inputs 1/L, 2/R (XLR/TRS Combo type): XLR type (with phantom power), 1/4-inch TRS phone type (balanced/unbalanced)
Microphone input with Powert plug-in (Stereo miniature phone type)Audio outputPhones jack (Stereo mini-jack)Nominal input level
(Variable)Analog input 1/L, 2/R:+4, -2, -8, -14, -20, -26, -32, -38, -44, -50, -56, -62 dBu
Entrée micro avec Plug-in power: LOW -7.5 dBu, MID -21 dBu, HIGH -26 dBu
• Input Level control: CenterInput impedanceAnalog input 1/L, 2/R: 5k ohms
Mic input with Plug-in power: 3k ohms (SENS = MID/HIGH), 2k ohms (SENS = LOW) Maximum input level Analog input 1/L, 2/R: +24 dBu (SENS = +4 dBu)
Mic input with Plug-in power: +4 dBu (SENS = LOW) Output level 35 mW + 35 mW (with 16 ohm load) Recommended load impedance 16 ohms or more Frequency response 20 Hz to 40 kHz Phantom power 48 V + or - 4 V
10 mA or less on all channelsUSB interfaceMini-B type socket, "USB mass storage device" class, USB audio (Hi-Speed USB)VARIOUSScreen160 x 160 pixel graphic touchscreenPower supplyPower adapter
Alkaline battery (AA, LR6) x 4
or Ni-MH rechargeable battery (AA, HR6) X 4 Consumption 500 mA (MAX) Accessories Instructions for use
SD card
Power adapter
Power cord
DVD-ROM Cakewalk SONAR LE (pour Windows)
USB cable (mini-B type)
WindscreenOptions (sold separately)Cover/Windscreen: OP-R26CW
Binaural Microphone/Earphones: CS-10EM
Stereo unidirectional microphone: CS-50
Stereo microphone: CS-15S
Stereo Headphones: RH-300
Reduction for microphone stand: OP-MSA1
Microphone stand (ST-100MB)
DIMENSIONS Width 82 mm
3-1/4 inches Depth 180 mm
7-1/8 inches Height 41 mm
1-5/8 inchesWeight (without batteries)370 g
0 lbs. 14 oz.
