Super Wizard 5-piece maple/walnut neck
The Super Wizard 5-piece maple/walnut neck provides exceptional playing comfort.
Rosewood fretboard
The rosewood fretboard provides a well-balanced solid tone with a focused mid range.
Jumbo frets
Jumbo frets contribute to excellent playability, especially for single-note playing.
Basswood body
The basswood body delivers a natural and flat tone.
Infinity R/V8 pickups
Ibanez Infinity pickups deliver accurate and tight sound with excellent dynamics, even at high-gain settings.
Gotoh® machine heads
Gotoh® machine heads provide superior precision, a smooth feel, and excellent tuning stability.
Edge tremolo
The Edge tremolo provides exceptional tuning stability, precise intonation adjustment, and playing comfort.

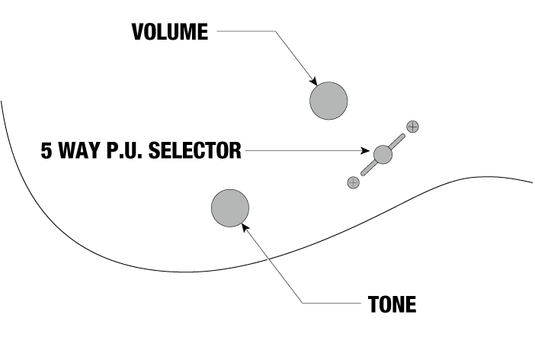

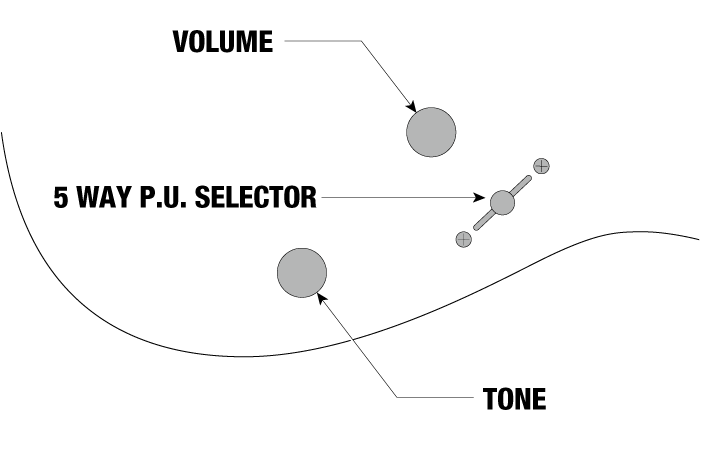

When the guitar is in playing position, a knob and a selector switch are located on the lower edge of the body. The five-way pickup selector is located near the neck. The tone pot is closest to the output jack. The volume pot is located just above the pickup selector.
When the selector is in the neck position, the neck pickup is selected. Between the neck and center positions, the neck pickup is selected and wired in parallel. In the center position, the neck and bridge pickups are selected. Between the center and bridge positions, the neck and bridge channels of the neck pickup are selected. In the bridge position, the bridge pickup is selected.
SPECS
Neck type: Super Wizard, 5-piece maple/walnut
Top/Back/Body: Basswood
Fretboard: Rosewood, white sharktooth inlay
Fret: Jumbo
Number of frets: 24
Bridge: Edge
String space: 10.8 mm
Neck pickup: Infinity R (H), passive/ceramic
Bridge pickup: V8 (H), passive/Alnico
Factory tuning: 1E, 2B, 3G, 4D, 5A, 6E
Strings: D'Addario® EXL120
String gauge: .009/.011/.016/.024/.032/.042
Nut: Locking
Hardware color: Black

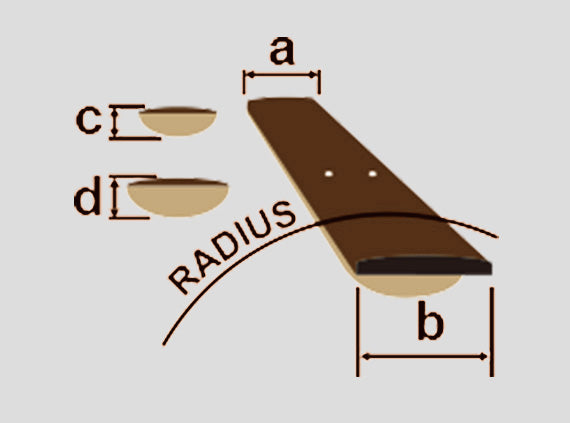

NECK DIMENSIONS
Scale: 648 mm/25.5"
a : Width at nut: 43 mm
b : Width at 24th fret: 58 mm
c : Thickness at 1st fret: 17 mm
d : Thickness at 12th fret: 19 mm
Radius: 430 mmR
