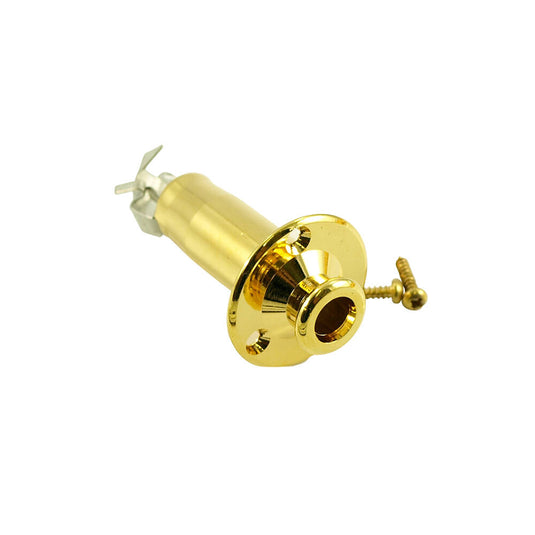

This strap button stereo jack is becoming an industry standard in acoustic guitar manufacturing. This model incorporates a strap button and is easily installed using three small screws through an external mounting flange, rather than a threaded barrel that screws directly into the guitar. This allows you to solder your wiring and perform the installation without the risk of twisting the solder joints, making installation or repair faster and easier. Available in chrome or gold finish. Screws included.
Technical specifications
– Flange diameter: 63/64" (25 mm)
– Required cavity diameter: 15/32" (11.8 mm)
– Required cavity depth: 47.5 mm
– Mounting screw type: #2 (3/8", Phillips SMSA) round head, nickel (ref. TMSC for chrome finish; TMSG for gold)
