The Catalyst family includes three two-channel amplifiers that perform like traditional guitar amps while providing the increased versatility of modern amplifiers. From the 200-watt Catalyst 200, capable of holding its own on almost any stage, to the 60-watt Catalyst 60, perfect for practicing, recording and performing in small venues, there's a Catalyst amp for every guitarist.

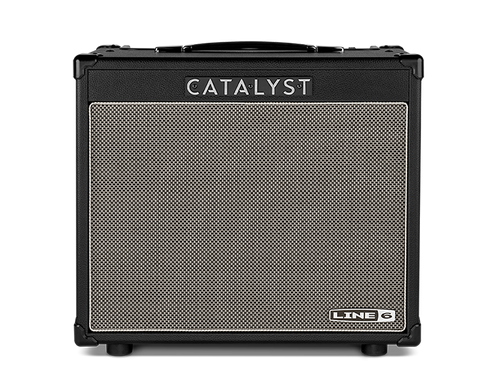

The Catalyst 200 amplifier performs like a traditional guitar amp, while providing the increased versatility of a modern amp. Catalyst amplifiers offer six original amp designs – ranging from pure tone to modern high gain – designed using Line 6 HX's renowned sound design techniques to ensure exceptional sound and feel. These powerful, rugged amps are suitable for both stage and studio use, and feature an XLR line output and a 4-channel USB recording interface. You'll also find custom amplifier circuitry for each amp type, a dedicated reverb section with six reverb types, 18 additional effects, an effects loop, a power amp input for using the Catalyst as a powered speaker , MIDI capabilities and power attenuation options for playing at any volume. The free Catalyst Edit app for desktop and mobile devices offers in-depth editing capabilities.
Description
• Six Line 6 Original Design amp voices, from purest purity to highest gain, with custom amp control
• Six banks of two channels for a total of twelve preset locations
• Six high-quality, custom-designed reverbs
• Six custom echo effects
• Six modulation effects
• Six filter and pitch shift effects
• Power amp input feature that lets you connect external effects pedals, footswitches, or amplifier and effects processors (such as Line 6 Helix, HX Stomp, or POD Go) directly to the power amplifier to get the cleanest amplification for your modeling
• XLR direct output with subwoofer emulation for connecting to a PA console or recording device
• USB audio interface for recording and editing
• FX loop for use with external effects
• MIDI input jack for use with external MIDI controllers (Catalyst 100 and 200 only – note that all Catalyst models offer MIDI input via USB)
• Headphone output jack
• 3.5 mm (1/8 in) auxiliary input for other audio sources
Features
Amplifier power: 200 watts
Power damping: Full power, half power, 0.5 watt, mute
Speakers: 2 x 12" with custom voice
Number of channels: 2
Amp voice: 6
Instrument input: 1 x 6.35 mm
Equalizer: 3 bands
Settings: Boost, gain, presence, channel volume, master volume
Digital reverb: 6 types
Digital effects: 6 effect types each: echo, modulation and pitch/filter
Tap-tempo: Yes
Tuner: Yes
Effects loop: Yes
Auxiliary input: 3.5mm
Headphone output: 6.35 mm (1/4 in)
Direct output: XLR with Ground Lift
USB audio interface: 4 inputs/4 outputs
Power amplifier input: 6.35 mm (1/4 in) (using FX loop feedback)
MIDI: 5-pin DIN (200/100) or USB (200/100/60)
Catalyst Edit Software – remote software editor (PC, Mac, iOS, Android)
Dimensions (W x D x H): 694 x 260 x 478 mm (27.3 x 10.2 x 18.82 in)
Weight: 18.9 kg (41.6 lbs)
