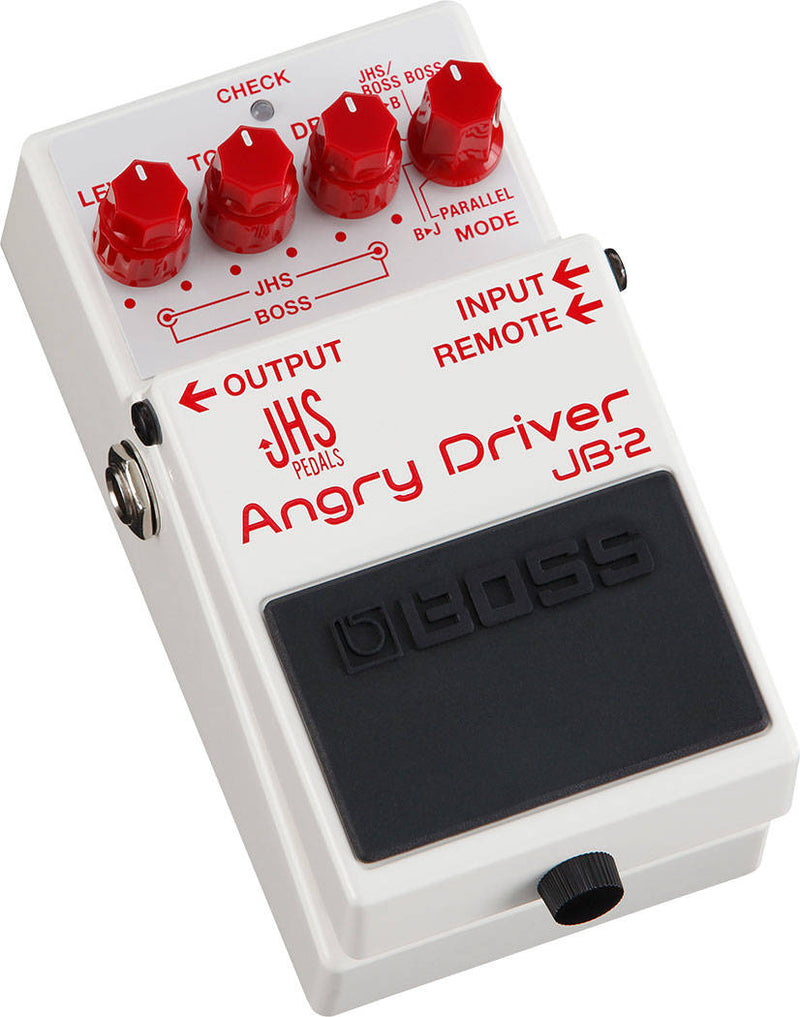

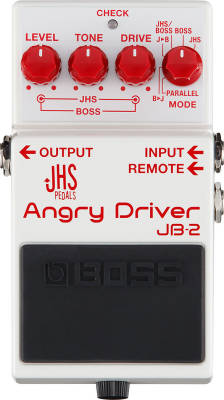

An all-new Overdrive pedal with impressive tonal possibilities, jointly designed by BOSS and JHS Pedals
Combines the sounds of BOSS BD-2 Blues Driver and JHS Pedals Angry Charlie
The JB-2 Angry Driver features three dual concentric knobs that allow control of Overdrive, sound and volume for each type of effect available
A Mode button to choose the type of Overdrive, two series connectors for effect layering, or a parallel connection to produce new sounds
Another mode allows you to switch between BOSS and JHS Overdrives using the integrated footswitch
A Switch input allows remote control of modes and Bypass from an external footswitch or switch system
A multi-color LED indicator indicates BOSS mode in blue, JHS mode in red, and the combination of the two in purple.
The BOSS 5-year warranty
FEATURES Nominal input level -20 dBu Input impedance 1 M ohm Nominal output level -20 dBu Output impedance 1 k ohm Recommended load impedance 10 k ohm or more Controls Footswitch
MODE button, DRIVE button, TONE button, LEVEL button Indicator Check indicator (also serves as a battery check indicator) Connectors INPUT jack, OUTPUT jack, REMOTE jack, AC adapter jack (9V DC) Power source Alkaline battery (9 V, 6LR61) or carbon-zinc battery (9 V, 6F22)
AC adapter (sold separately) Current draw 50 mA Expected battery life in continuous use Alkaline: approx. 9.5 hours
Carbon: approx. 2.5 hours
• These figures vary depending on actual usage conditions. Accessories Owner's Manual, Leaflet ("SAFETY INSTRUCTIONS," IMPORTANT NOTE "and "Information") Alkaline battery (9V, 6LR61) Option (sold separately) AC adapter (PSA series)
Foot switch: FS-5L, FS-6, FS-7
HEIGHT AND WEIGHT
Width 73mm
2-7/8 inch Depth 129 mm
5-1/8 inch size 59 mm
2-3/8 inch Weight (battery included) 440 g
1 lb
