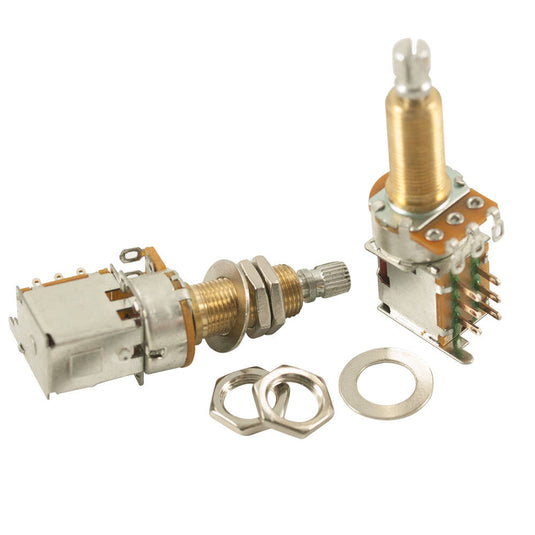

Large Alpha© potentiometer for USA instruments with a "push-push" type switch used for coil splitting, tapping, phase switching, or similar uses.
Features
Dimensions
– Diameter: 24 mm
– Bushing thread: 3/8", 32 type
DPDT switch
– "Push-push" type
Resistance
– 500 kilohms
Taper
– Logarithmic
Shaft
– Split shaft (24 teeth)
Bushing length
– Long bushing (3/4")
