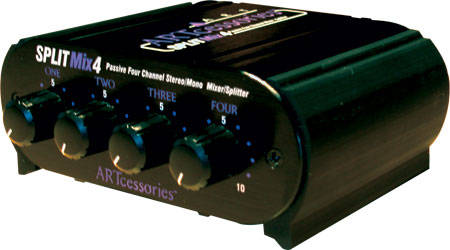

The SPLITMix4 is a fully passive hybrid mixer that offers a wide variety of configurations. Mix 4 stereo input channels down to 1 stereo output, split a stereo input signal to distribute 4 stereo output channels, or combine configurations for a wide range of applications. You can even configure the SPLITMix4 as 4 stereo input channels via 4 independent level attenuators and 4 stereo output channels.

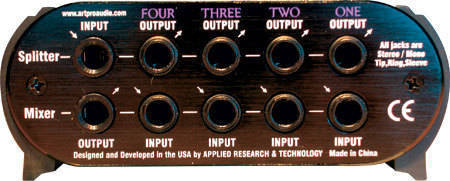

Independent stereo level controls are provided on each channel. All 1/4" connections are stereo TRS (Tip, Ring, Sleeve) and all channel connections have intelligent switching to allow a wide variety of configurations. Plugging into a mix input channel removes it from the mix bus splitter, and plugging into a splitter output channel removes it from the mix bus. Stereo or mono operation is determined by the type of 1/4" jack and wiring you use.
The SPLITMix4's completely passive design has no active circuitry to add noise or distortion, and virtually any signal level can be processed. The level attenuators cover a wide range and provide over 90 dB of attenuation and channel isolation. The SPLITMix4 is primarily designed as a line level device with medium input and output impedances.
Features
- Four stereo input channels
- Stereo output
- Independent stereo level controls are provided on each channel.
- Passive design (no power supply required)
- Over 90 dB of attenuation
Specifications:
Frequency response: 20Hz 20kHz, +/-1dB
THD: 90dB (typical)
Channel isolation: >90dB (typical)
Power supply required: None (fully passive)
Dimensions (HxWxD in): 1.85 x 4.6 x 4.1
Dimensions (HxWxD mm): 47 x 117 x 104
Weight: 0.84 lb / 0.38 kg
