Device description
The Shure GLXD16+ is a digital wireless guitar system that delivers reliable performance and exceptional sound quality in an easy-to-use package, even if you've never used a wireless system before. Shure's next-generation technology takes care of the setup for you, automatically scanning the 2.4 and 5.8 GHz frequency ranges to find the best possible digital transmission channel to ensure reliable performance for your application at a typical range of up to 100 feet indoors and 65 feet outdoors.

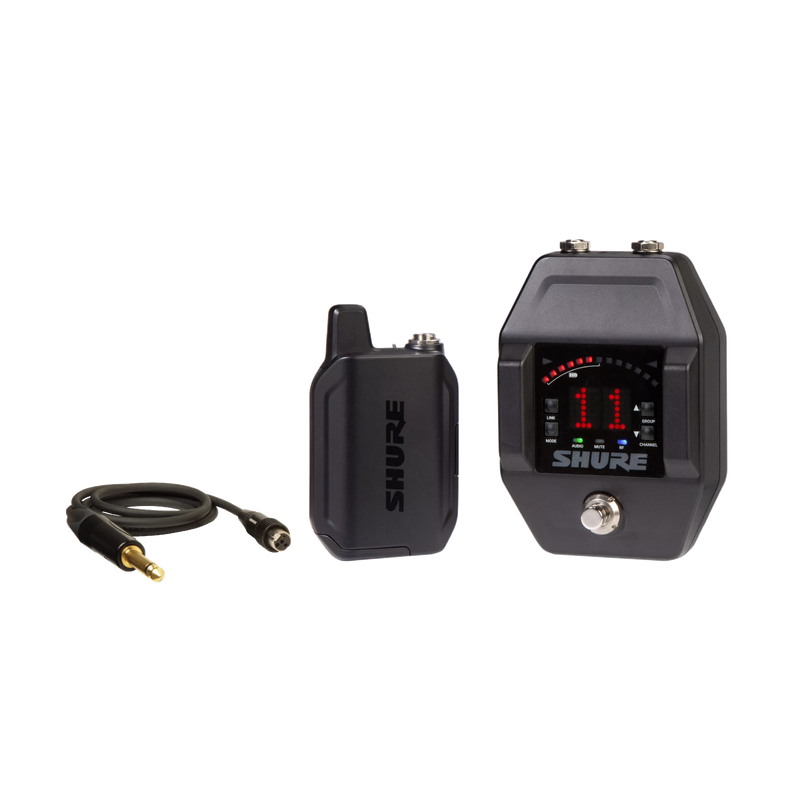

This version of the GLXD16+ is configured with a bodypack transmitter and the WA305 guitar cable, a 3-foot instrument cable with a 4-pin mini connector (TA4F) on one end, and a plated Neutrik 1/4" TS connector gold to each other The GLXD1+ transmitter's sturdy metal chassis offers an ergonomic design and comfortable fit with a convenient on/off switch that can be operated by touch. The system transmits audio with a flat frequency response. 20 Hz to 20 kHz and a dynamic range of 120 dB, leaving the sound of your mic unaffected by wireless components. The transmitter's input gain can be adjusted wirelessly from the receiver's front panel to achieve optimal performance. optimize the audio signal.

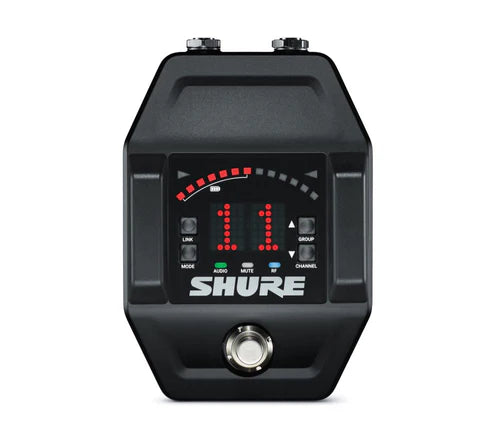

This configuration includes a robust, metal, stompbox-style pedal receiver with two fixed antennas on the front. A multi-segment LED clearly indicates the remaining battery life of the transmitter and also functions as an easy-to-read tuner. The transmitter's input gain can be adjusted wirelessly from the receiver's front panel to optimize the audio signal. In addition to a 1/4" instrument output, the unit also features a 1/4" input, allowing it to be used as a wired tuner. A power supply is provided and the DC input is compatible with standard positive or negative tip power supplies, allowing the GLXD6+ to fit directly into your pedalboard. Note that even when the unit is plugged in, the display does not activate until a cable is connected to the 1/4" output or input. A durable foot switch provides instant cutting sound in receiver mode and tuner mode.
Dual-band technology for easy, reliable wireless performance
GLX-D+ dual-band digital wireless systems operate in the 2.4 and 5.8 GHz frequency ranges, automatically scanning both to select the one that offers the greatest number of clean channels.
The old GLX-D system only operated in the 2.4 GHz range, which provides a bandwidth of 83.5 MHz. By expanding to the 5.8 GHz range, GLX-D+ provides an additional 125 MHz of potential open frequencies for available channels, helping to minimize dropouts and improve reliability.
The system offers true digital diversity, meaning two antennas and two independent receiving modules work together to reduce RF signal losses.
Additionally, the GLX-D+ transmits on its own primary frequency, like a traditional system, but it also transmits on two additional "backup frequencies" at the same time. If the system detects interference on the main frequency, it will automatically switch to one of the backup frequencies without the user noticing.
Besides the additional spectrum, there are other benefits to operating in the 5.8 GHz range. In general, there are fewer devices operating in this range, making the spectrum cleaner. The 2.4 GHz range accommodates Bluetooth devices and other devices, including Wi-Fi routers and repeaters, security cameras, baby monitors, garage door openers and more. Operating in this range means competing with these devices for the same space.
GLX-D+ receivers typically allow up to 4 microphones to be used simultaneously in the same space. Under ideal conditions, up to 8 systems can be used.
If you need more transmitters at once, consider a system with the GLXDR+ Half-Rack Receiver, which offers detachable antennas and can accommodate the GLXD+FMZ3/LC Frequency Manager (available separately). The Frequency Manager allows 11 transmitters to operate simultaneously (16 under optimal conditions), making it ideal for installations with multiple wireless systems.
Intelligent battery charging for uninterrupted performance
The GLXD1+ bodypack transmitter runs on a rechargeable SB904 lithium-ion battery (included).
The battery provides up to 12 hours of continuous use on a full charge.
A red and green LED indicator located on the transmitter allows you to view sync and battery status at a glance.
The transmitter automatically turns off after approximately one hour to save battery power if a signal from a linked receiver is not detected.
The SB904 can be recharged in the bodypack transmitter using a USB charging cable.
A quick charge of 15 minutes is enough for an hour and a half of use.
The remaining battery life of the SB904 is displayed in hours and minutes on the front panel of the receiver.
Add features to your system
Shure offers a variety of headset, instrument, and handheld microphone options to adapt your GLX-D+ system as your needs evolve.
Instrumentalists
The WB98H/C flexible gooseneck microphone attaches to brass, woodwind and percussion instruments and connects to the GLXD1+ bodypack transmitter.
Presenters
For a discreet visual appearance, try the WL93 subminiature omnidirectional lavalier microphone, which plugs into the GLXD1+ bodypack transmitter and provides consistent pickup, even when the performer turns away from the mic.
The WL185 lavalier microphone features a cardioid polar pattern that focuses audio capture on the artist, reducing feedback when using PA equipment.
The discreet MX153 miniature headset microphone provides exceptional clarity for vocal applications.
Shure offers several headset options. Choose the PGA31 headset for everyday applications or try the SM31 Fitness or SM35 Performance models for more active presentations.
Singers/presenters
The GLXD2+ handheld transmitter is available with a variety of microphone capsule options for presenters and performers who prefer the flexibility of a handheld microphone, including the SM58, BETA 58A and BETA 87A capsules.
Shure GLXD16+-Z3 Specs
System
Wireless technology Digital 2.4 GHz/5.8 GHz
Transmitters included 1 x Bodypack
Diversity Real digital diversity
RF frequency band Z3: 2400 to 2483.5 MHz / 5725 to 5850 MHz
RF bandwidth 208.5 MHz
RF Channel Scan Auto Scan
Maximum operating range 30.5 m (line of sight)
Maximum number of transmitters per band 8
Mobile app compatible No
*As of February 2023: Check with manufacturer for latest compatibility
Dynamic range 120 dBA
Proprietary modulation
Receiver
Stompbox Receiver Type
Mounting Options Bottom Bracket (with hardware included)
Antenna 2 x external, fixed (top mounting)
Number of audio channels 1
Audio I/O 1 x unbalanced instrument input 1/4" TS female
1 x 1/4" TRS female Balanced instrument output
Audio output level 1/4" output:
+8.5dBV
Frequency response 20 Hz to 20 kHz (mic dependent)
USB/Lightning Connectivity 1 x USB-C female (firmware update)
1/4" Output Impedance:
100 Ohms (balanced)
50 Ohms (unbalanced)
Approximate RF sensitivity -88 dBm
Rejection of extraneous noise: >35 dB
Power Requirements AC/DC Power Adapter
AC/DC power adapter 9 to 15 VDC at 400 mA (included)
AC input power 100 to 240 VAC, 50/60 Hz
Display and indicators 1 x backlit LED (channel, group)
1 x Multi-segment LED (transmitter battery status)
Aluminum housing
Operating temperature 32 to 122°F / 0 to 50°C
Dimensions 3.7 x 1.9 x 5.4" / 95 x 48 x 138 mm
Weight 19.8 oz / 560 g
Issuer
Transmitter Type Pocket Box
10mW RF Output Power (EIRP)
Audio I/O 1 x TA4/Mini XLR male 4-pin unbalanced input (lockable)
Buffer None
Muting Off/On Switch
Audio input level -8.4 dBV / 7.5 V pp
Gain range -20 to +40 dB (1 dB steps)
Synchronization method Owner
Antenna 1 x internal, fixed (belt)
Power Supply Battery
Battery type 1 x Shure SB904 (included, replaceable)
Internal battery capacity 2420 mAh
Battery charging time 0.25 to 3 hours
Approximate battery life 12 hours (lithium rechargeable)
USB/Lightning Input/Output 1 x USB-C (charging)
Display and indicators 1 x LED (battery status, timing)
Metal Case
Dimensions 2.6 x 4.5 x 1.1" / 67 x 115 x 28.5 mm
Weight 5.4 oz / 153.1 g (without batteries)
