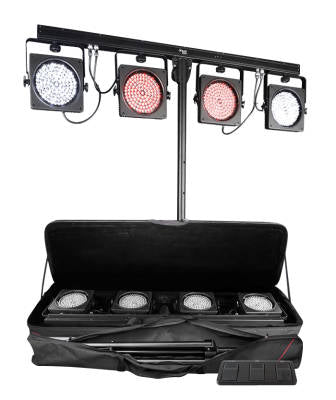

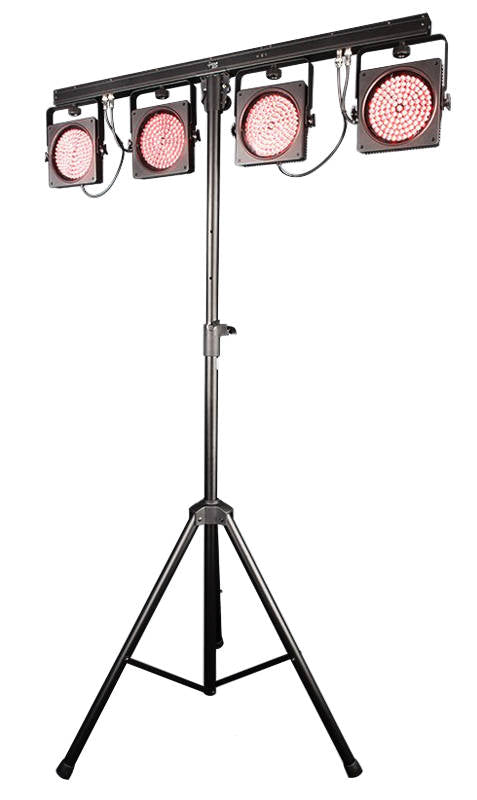

4BAR USB is a complete lighting solution for mobile artists. D-Fi USB compatible for wireless master/slave or DMX control, it also includes a wireless footswitch that can control multiple units. Create synchronized light shows using built-in automated programs with the optional IRC-6 remote control.
Includes:
- Power cord
- 4BAR and transport bag on stand
- Tripod
- Wireless control pedal
- Quick Reference Guide / Warranty Card
Features :
- Complete light bath lighting solution designed for mobile artists
- Plug-and-play wireless control with included foot pedal that controls multiple units
- Get total coverage of the space or stage with 4 individually adjustable heads.
- D-Fi USB compatibility for wireless master/slave or DMX control
- Easy to set up and take down in minutes using the included tripod, wireless foot control and carrying bags.
- Increase mounting options by installing the integrated bolts onto the joist securely.
- Create large coordinated light shows with other 4BAR devices in master/slave mode.
- Sound-activated programs dance to the beat of the music
- Easily control static colors and automated programs with the optional IRC-6 remote control.
- Generate a synchronized show in master/slave mode with integrated, easy-to-access automated programs.
Specifications:
- DMX Channels: 3 or 15 DMX
- Connectors: XLR 3-pin
- Light source: 432 LEDs (144 red, 144 green, 144 blue) 0.25 W, (20 mA), lifespan of 100,000 hours
- Stroboscopic frequency: 0 to 20 Hz
- PWM Frequency: 1.2 kHz
- Beam angle: 21 degrees Field angle: 33 degrees
- Light illuminance: 725 lux @ 2 m (per module)
- Input voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and current: 36 W, 0.6 A @ 120 V, 60 Hz
36 W, 0.3 A @ 230 V, 50 Hz
- Weight: 4.9 kg (10.8 lb) (controller): 1.8 kg (0.8 lb)
- Taille : 47,4 x 2 x 11 po (1 205 x 50 x 285 mm) (contrôleur) : 12,4 x 5,2 x 1,5 po (315 x 132 x 38 mm)
- Approvals: EC
- Optional controllers: IRC-6, D-Fi USB
- Foot height: 7 ft 4 in (2.2 m)
