The Alpha Omega 200 is thinner and lighter than ever. Featuring an auxiliary input and a headphone output for silent practice, and an intuitive push-potentiometer for mute and master control. Pre/bypassable XLR DI output with switchable ground lift, making these amps reliable for all kinds of musicians with a wide range of possibilities.
Input
Use this jack to connect your instrument via a standard ¼" mono cable.
Drive
This knob controls the amount of distortion the Alpha·Omega engine will provide. It will cover a wide range of overdriven sounds, from subtle break-ups to over-the-top distorted sounds.

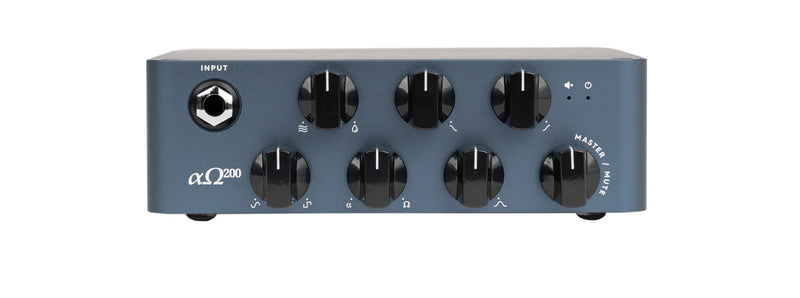

Front Panel Features
Mod
Selects or blends between the two distinct distortion circuits: Alpha is punchy, tight with plenty of definition, while Omega is simply brutal and raw.
Blend
Use this knob to mix between the Clean signal and the Distortion signal (Alpha·Omega engine).
Bass
+-12 dB at 80 Hz. Use this knob to change the low frequency content of the signal.
Mids
+-12 dB at 1 kHz. This knob controls the mid frequency content of the signal.
Treble
+-12 dB at 5 kHz. Use this knob to change the high frequency content of the signal.
Master/Mute
Use this knob to control the overall volume of the amplifier. Use this push-button to mute the speaker.
Dimensions
Width: 15 cm / 6″
Length: 15.7 cm / 6¼″
Height: 5.2 cm / 2″
Weight: 0.965 kg / 2.12 lbs
Rear Panel Features
Speaker Output
Use this connector to connect the amplifier to your cabinet. This Speakon combo jack allows for operation with either a Speakon or ¼″ speaker cable.
Ground Lift
Use this control to lift the ground of the XLR DI output. If you encounter ground hum in your DI signal, try changing the setting of this control.
DI Output
Use this connector to send your bypass signal to the console, mic preamp, interface, etc. The DI output only delivers the bypass DI signal.
AC Input
Use this connector to feed electric power to the amplifier. 100 – 230 VAC, 50-60 Hz.
AC Power
Use this switch to release the audio energy of your bass.
Headphone Output
Connect your headphones and enjoy the analog cabinet emulation.
Aux Input
Use this connector to play music from your laptop, phone, MP3 player, etc. This input is routed only to the headphone output without cabinet emulation.
Warning
· There are no user-serviceable parts inside the amplifier. Do not open the amp.
· Never use the amp in a high-moisture environment or near liquids.
· The Alpha·Omega 200 can deliver more than 100 dB of power. Exposure to this sound level can damage your hearing. Always use proper hearing protection when exposed.
· The Alpha·Omega 200 can deliver more than 200 watts. Make sure your speaker cabinet is capable of delivering this power.
· Do not cover the vent holes. The vent holes are part of the amplifier's cooling system. Covering the vent holes can result in overheating and damage to the amplifier.
· Do not use an instrument cable as a speaker cable. An instrument cable is not designed to deliver the type of power sent from the amplifier to the speaker.
